# Our Expertise
Precision Assurance with Advanced Inspection Tools
At Real Tech Engineers, quality isn't just a checkpoint — it's a commitment. We utilize a comprehensive range of high-precision inspection instruments to ensure that every component we manufacture meets exact dimensional and performance specifications.
Why Choose Real Tech Engineers for Quality Instuments ?
Engineering Innovation. Results That Matter.
At Real Tech Engineers, quality isn't just a checkpoint — it's a commitment. We utilize a comprehensive range of high-precision inspection instruments to ensure that every component we manufacture meets exact dimensional and performance specifications.
QUALITY INSTRUMENTS

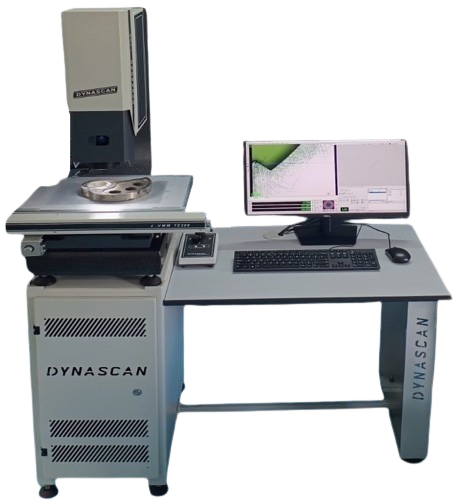

DYNASCAN - V M M TZ300
| S.NO | SPECIFICATIONS | VIDEO MEASURING MACHINE |
|---|---|---|
| 1 | MODEL | TZ 300 |
| 2 | CAMERA | 1.3 MEGA PIXEL HD CAMERA |
| 3 | LENS | 6.5X ZOOM LENS WITH DÉTENTE MOTORIZED ZOOM LENS FOR CNC |
| 4 | STROKE | 300X200X175 MM |
| 5 | AXIS | MANUAL MOTORIZED OR FULL CNC, Z AXIS MOTORIZED AUTO FOCUS |
| 6 | MAGNIFICATION | 30 TO 180X |
| 7 | ON SCREEN ACCURACY | 2+(L/100) MICRONS (MEASURED WITH A CALIBRATION STANDARD) |
| 8 | RESOLUTION | 1 MICRON |
| 9 | REPEATABILITY | 1 TO 2 MICRONS |
| 10 | ILLUMINATION SYSTEM |
PROFILE - LED LIGHT SOURCE WITH SOFTWARE PROGRAMMABLE INTENSITY CONTROL SURFACE - 8 SEGMENT, 3 ROW LED RING LIGHT, WITH 72 HIGH POWER LED'S CO AXIAL - LED LIGHT SOURCE WITH SOFTWARE PROGRAMMABLE INTENSITY CONTROL |
MITUTOYO - ROUGHNESS TESTER
| S.NO | SPECIFICATIONS | STANDARD DRIVE UNIT TYPE |
|---|---|---|
| 1 | MEASURING RANGE X AXIS | .69” (17.5mm) |
| 2 | Range & Resolution | 14200 µin (~7900µin– +6300µin) / 360µm (~200µm – +160µm) |
| 3 | Measuring speed | Measuring: 0.01, 0.02, 0.03 in/s (0.25mm/s, 0.5mm/s, 0.75mm/s) Returning: 1mm/s |
| 4 | Measuring force / Stylus tip | 0.75mN type: 0.75mN / 2µmR 60°, 4mN type: 4mN / 5µmR 90° |
| 5 | Skid force | Less than 400mN |
| 6 | Evaluation parameters | Ra, Rz, Rp |
| 7 | Cut off length λc / λs | 0.003, 0.01, 0.03, 0.1” (0.08, 0.25, 0.8, 2.5mm) |
| 8 | Sampling length | 0.003, 0.01, 0.03, 0.1” (0.08, 0.25, 0.8, 2.5mm) |
| 9 | LCD dimensions | 1.45 x 1.93” (36.7 x 48.9 mm) |
Precision Dies for High-Performance Production
At Real Tech Engineers, we specialize in the design and manufacturing of mould dies for plastic, rubber, and metal components. Whether for high-volume industrial production or specialized applications, our dies are built for dimensional accuracy, durability, and seamless integration into your production systems.
With advanced CAD/CAM technology and full in-house machining capabilities, we ensure every mould meets stringent standards for tolerance, surface finish, and repeatability. From single-cavity prototypes to complex multi-cavity production tools, we work closely with clients to deliver customized solutions that boost manufacturing efficiency and product consistency.
LIST OF QUALITY INSTRUMENTS
| S.NO | INSTRUMENT NAME | MAKE | CAPACITY | QTY |
|---|---|---|---|---|
| 1 | Roughness Tester | Mitutoyo | Flat Surface Machine | 1 |
| 2 | Profile Projector | Dynascan | 300×200×170 | 1 |
| 3 | Surface Table | Max | 1000m×630m | 1 |
| 4 | Digital Height Gauge | Mitutoyo | 0-300mm | 1 |
| 5 | Dial Vernier | Mitutoyo | 0-200mm, 0-300mm | Each One |
| 6 | Digital Vernier | Mitutoyo | 0-300mm | 1 |
| 7 | Digital Micrometer | Mitutoyo | 0-25mm | 1 |
| 8 | Micrometer | Mitutoyo | 0-25, 25-50, 50-75, 75-100, 100-125, 125-150mm | Each One |
| 9 | Slip Gauge | Kency | 0.5-100mm | 1 |
| 10 | Bore Gauge | Mitutoyo | 6-10, 10-18, 18-35, 35-60, 50-100mm | Each One |
| 11 | Radius Gauge | Whitworth, West Germany | 16r 7mm, 7.5-15mm | 1 |
| 12 | Thread Plug Gauge | Baker |
M4*0.7-6H, M5*0.8-6H, M6*1-6H, M8*1.25-6H, M10*1.5-6H, M12-6G, M8*1.25-6G, M10*1.5-6G, M12*1.75-6G, M16*2-6G, M20*2.5 |
Each One |
| Thread Ring Gauge | ||||
| 13 | Lever & Plunger Dial | Mitutoyo & Baker | 0-0.8mm | 1 |
Ready to Build Something Exceptional?
Let’s turn your engineering challenges into precision-crafted solutions. Whether you're starting a new project or looking for a trusted partner, Real Tech Engineers is here to deliver performance you can count on.
