# QUALITY INSTRUMENTS
Precision Assurance with Advanced Inspection Tools
At Real Tech Engineers, quality isn't just a checkpoint — it's a commitment. We utilize a comprehensive range of high-precision inspection instruments to ensure that every component we manufacture meets exact dimensional and performance specifications.

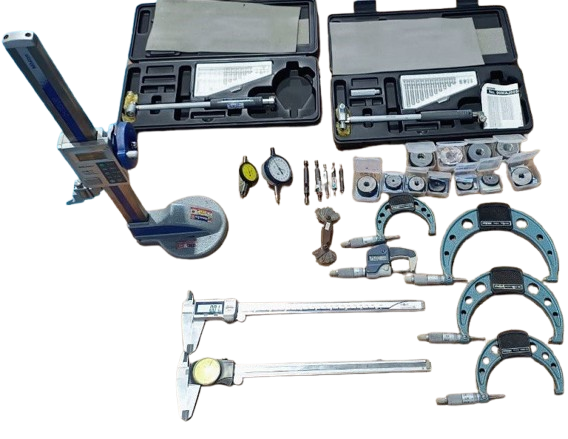

Our workshop is equipped with the best-measuring equipment with Dynascan Video Measuring Machine Mitutoyo – Roughness Tester, Digital Height Gauge, Digital and Dial Vernier, Digital Micrometer, Slip Gauge, Bore gauge, Radius Gauge, Thread plung gauge, Thread Ring, Gauge, Lever and Plunger Dial Slip Boxes, and many more.

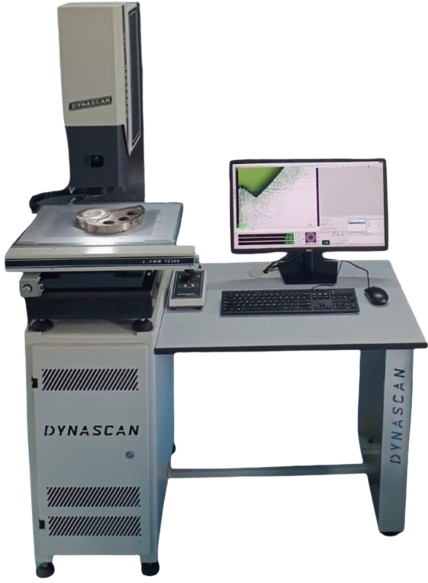

DYNASCAN - V M M TZ300
| S.NO | SPECIFICATIONS | VIDEO MEASURING MACHINE |
|---|---|---|
| 1 | MODEL | TZ 300 |
| 2 | CAMERA | 1.3 MEGA PIXEL HD CAMERA |
| 3 | LENS | 6.5X ZOOM LENS WITH DÉTENTE MOTORIZED ZOOM LENS FOR CNC |
| 4 | STROKE | 300X200X175 MM |
| 5 | AXIS | MANUAL MOTORIZED OR FULL CNC, Z AXIS MOTORIZED AUTO FOCUS |
| 6 | MAGNIFICATION | 30 TO 180X |
| 7 | ON SCREEN ACCURACY | 2+(L/100) MICRONS (MEASURED WITH A CALIBRATION STANDARD) |
| 8 | RESOLUTION | 1 MICRON |
| 9 | REPEATABILITY | 1 TO 2 MICRONS |
| 10 | ILLUMINATION SYSTEM |
PROFILE - LED LIGHT SOURCE WITH SOFTWARE PROGRAMMABLE INTENSITY CONTROL SURFACE - 8 SEGMENT, 3 ROW LED RING LIGHT, WITH 72 HIGH POWER LED'S CO AXIAL - LED LIGHT SOURCE WITH SOFTWARE PROGRAMMABLE INTENSITY CONTROL |

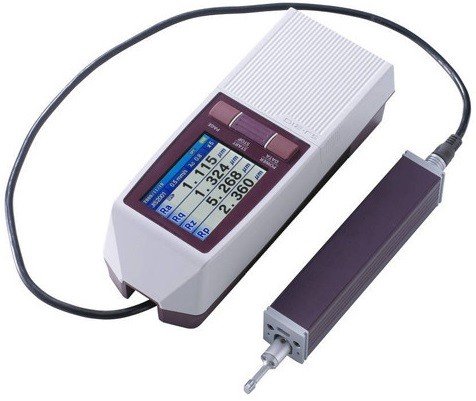

MITUTOYO - ROUGHNESS TESTER
| S.NO | SPECIFICATIONS | STANDARD DRIVE UNIT TYPE |
|---|---|---|
| 1 | MEASURING RANGE X AXIS | .69” (17.5mm) |
| 2 | Range & Resolution | 14200 µin (~7900µin– +6300µin) / 360µm (~200µm – +160µm) |
| 3 | Measuring speed | Measuring: 0.01, 0.02, 0.03 in/s (0.25mm/s, 0.5mm/s, 0.75mm/s) Returning: 1mm/s |
| 4 | Measuring force / Stylus tip | 0.75mN type: 0.75mN / 2µmR 60°, 4mN type: 4mN / 5µmR 90° |
| 5 | Skid force | Less than 400mN |
| 6 | Evaluation parameters | Ra, Rz, Rp |
| 7 | Cut off length λc / λs | 0.003, 0.01, 0.03, 0.1” (0.08, 0.25, 0.8, 2.5mm) |
| 8 | Sampling length | 0.003, 0.01, 0.03, 0.1” (0.08, 0.25, 0.8, 2.5mm) |
| 9 | LCD dimensions | 1.45 x 1.93” (36.7 x 48.9 mm) |
LIST OF QUALITY INSTRUMENTS
| S.NO | INSTRUMENT NAME | MAKE | CAPACITY | QTY |
|---|---|---|---|---|
| 1 | Roughness Tester | Mitutoyo | Flat Surface Machine | 1 |
| 2 | Profile Projector | Dynascan | 300×200×170 | 1 |
| 3 | Surface Table | Max | 1000m×630m | 1 |
| 4 | Digital Height Gauge | Mitutoyo | 0-300mm | 1 |
| 5 | Dial Vernier | Mitutoyo | 0-200mm, 0-300mm | Each One |
| 6 | Digital Vernier | Mitutoyo | 0-300mm | 1 |
| 7 | Digital Micrometer | Mitutoyo | 0-25mm | 1 |
| 8 | Micrometer | Mitutoyo | 0-25, 25-50, 50-75, 75-100, 100-125, 125-150mm | Each One |
| 9 | Slip Gauge | Kency | 0.5-100mm | 1 |
| 10 | Bore Gauge | Mitutoyo | 6-10, 10-18, 18-35, 35-60, 50-100mm | Each One |
| 11 | Radius Gauge | Whitworth, West Germany | 16r 7mm, 7.5-15mm | 1 |
| 12 | Thread Plug Gauge | Baker |
M4*0.7-6H, M5*0.8-6H, M6*1-6H, M8*1.25-6H, M10*1.5-6H, M12-6G, M8*1.25-6G, M10*1.5-6G, M12*1.75-6G, M16*2-6G, M20*2.5 |
Each One |
| Thread Ring Gauge | ||||
| 13 | Lever & Plunger Dial | Mitutoyo & Baker | 0-0.8mm | 1 |
